10-50AMP Rated

"COOL ONE" Top Mount Current Transformer Assembly

Functions as a load monitor for currents up to 50A AC. Current Transformer circuitry provides for either 0-50 ma ac or 0-10 volts dc, adjustable from a multi turn pot. The Current Transformer provides 1ma per amp. Assembly mounts on top of any solid state relay via press-on adaptor which also provides touch safe feature for active high voltage terminal of relay and allows the relay assemblies to be mounted side by side to save space.

APC2306
Current Transformer Module

APC7130 SSR Assembly
w/ APC2306 Mounted

Standard Cool One Features:

0-10Vdc signal proportional input amps
Output voltage pot adjustable from 10 to 50Amps
Over voltage zener protected to 15Vdc
CT output 1ma/A
Attaches to all standard Hockey Puck Style SSR's
Panel Mountable
Small outline maintains SSR DIN side by side mounting

Notes:

DC Output factory adjusted to 10V @ 50A
Turn pot clockwise to adjust to lower currents

SPECIFICATIONS

PART NUMBER	LINE CURRENT	CT OUTPUT	LINE VOLTAGE	TRANSIENT VOLTAGE	RELAY TYPE
APC2306	10-50Amps AC	1ma AC per Amp or 0-10Vdc	24-660Vac	Zener Protected to 15Vdc Max	Zero Cross or RTO

MECHANICAL DRAWING

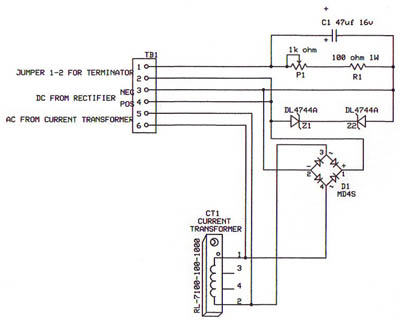

CT BOARD SCHEMATIC

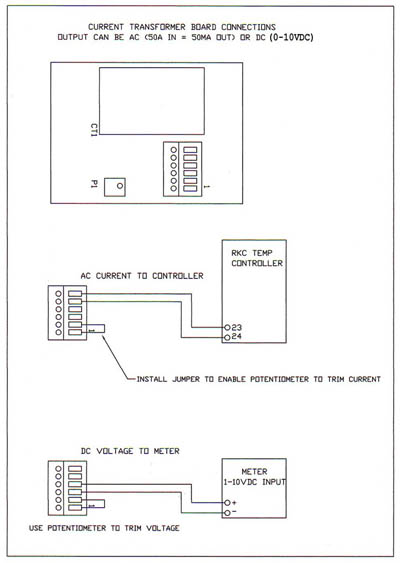

CONNECTION DIAGRAM
